When you start working with animations in Jetpack Compose, the spring() API feels intuitive at first—until you notice something odd: animations don’t seem to fully stop. They get very, very close to the target value… but technically never reach it.

That’s where visibilityThreshold quietly does some of the most important work.

This article walks you through what it is, why it matters, and how to use it correctly across different data types like Dp, Float, and Offset. Along the way, we’ll build real composable examples you can run and experiment with.

Why Spring Animations Need a Stopping Condition

Spring animations simulate real physics, Instead of moving linearly from point A to point B, they behave like a spring:

• They move toward the target
• Overshoot (depending on damping)
• Oscillate
• Gradually settle

From a math perspective, they never fully stop — they just get closer over time.

In UI, that’s not useful. We need a clear stopping point. Compose handles this using a threshold.

What is visibilityThreshold?

visibilityThreshold defines the minimum difference between the current animated value and the target value at which the animation is considered finished.

In simple terms:

• If the remaining distance is smaller than the threshold → animation stops
• If not → animation continues

How It Works for Different Types

Different types need different thresholds because “closeness” depends on the unit.

1. Dp (Density-independent pixels)

spring(
    dampingRatio = Spring.DampingRatioLowBouncy,
    stiffness = Spring.StiffnessMedium,
    visibilityThreshold = 0.5.dp
)

The animation stops when it’s within 0.5dp of the target.

Why this works:

• Human eyes can’t distinguish sub-pixel differences at that scale
• Prevents unnecessary micro-adjustments

2. Float (e.g., Alpha, Progress)

spring<Float>(
    dampingRatio = Spring.DampingRatioNoBouncy,
    stiffness = Spring.StiffnessMediumLow,
    visibilityThreshold = 0.01f
)

Stops when difference < 0.01

Why this matters:

• Floats are continuous values
• Without a threshold, fade animations might keep updating unnecessarily

3. Offset (Position)

spring(
    dampingRatio = Spring.DampingRatioMediumBouncy,
    stiffness = Spring.StiffnessHigh,
    visibilityThreshold = Offset(1f, 1f)
)

Stops when both X and Y are within 1 pixel

Why:

• Movement smaller than 1px is visually irrelevant
• Prevents jitter at the end of motion

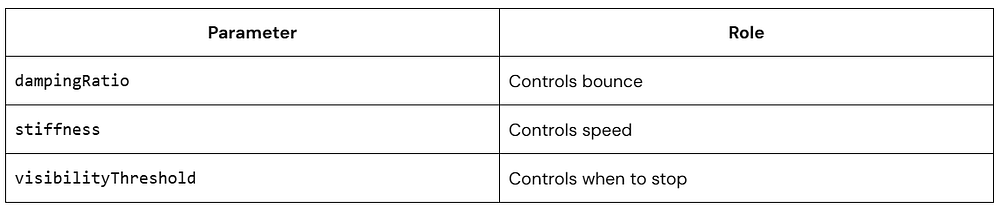

Quick Refresher on Spring Parameters

Real Examples with Composables

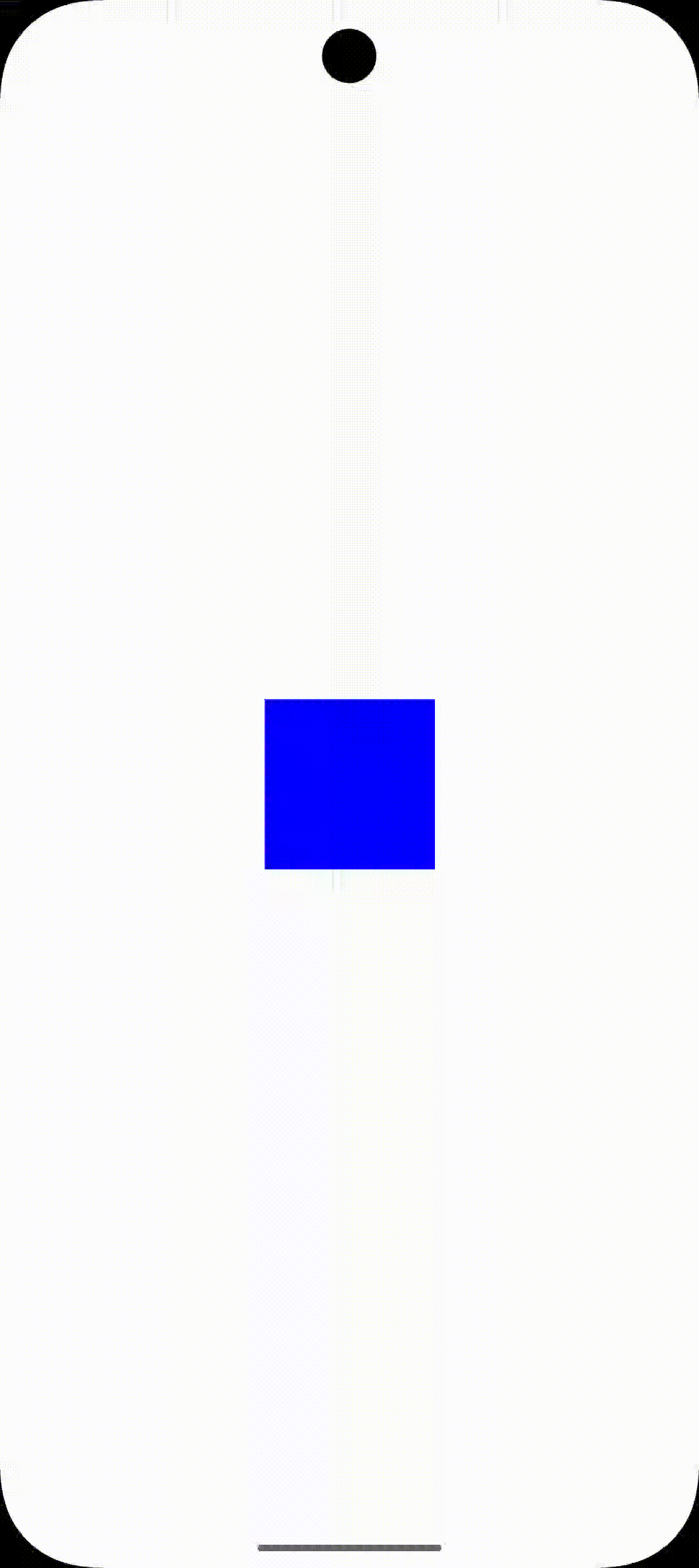

Example 1: Animating Size (Dp)

@Composable
fun SpringDpExample() {
    var expanded by remember { mutableStateOf(false) }

    val size by animateDpAsState(
        targetValue = if (expanded) 200.dp else 100.dp,
        animationSpec = spring(
            dampingRatio = Spring.DampingRatioLowBouncy,
            stiffness = Spring.StiffnessMedium,
            visibilityThreshold = 0.5.dp
        )
    )

    Box(
        modifier = Modifier
            .size(size)
            .background(Color.Blue)
            .clickable { expanded = !expanded }
    )
}

@Preview(showBackground = true)
@Composable
fun SpringDpExamplePreview() {
    CenteredPreview {
        SpringDpExample()
    }
}

What to notice:

• Smooth expansion and contraction
• A slight bounce effect
• Clean stop without jitter

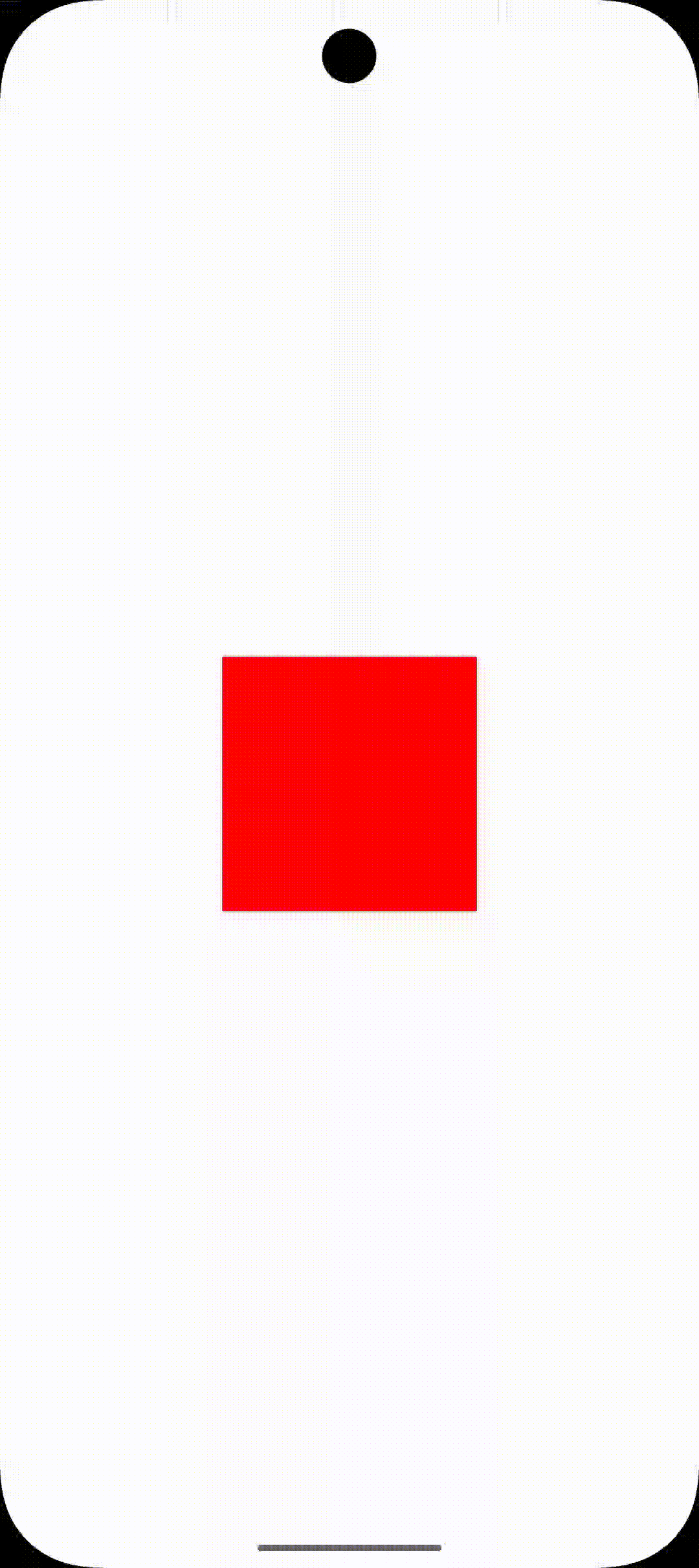

Example 2: Animating Alpha (Float)

@Composable
fun SpringFloatExample() {
    var visible by remember { mutableStateOf(true) }

    val alpha by animateFloatAsState(
        targetValue = if (visible) 1f else 0f,
        animationSpec = spring(
            dampingRatio = Spring.DampingRatioNoBouncy,
            stiffness = Spring.StiffnessMediumLow,
            visibilityThreshold = 0.01f
        )
    )

    Box(
        modifier = Modifier
            .size(150.dp)
            .background(Color.Red.copy(alpha = alpha))
            .clickable { visible = !visible }
    )
}

@Preview(showBackground = true)
@Composable
fun SpringFloatExamplePreview() {
    CenteredPreview {
        SpringFloatExample()
    }
}

Observation:

• Clean fade without bounce
• No flickering at the end
• Efficient termination

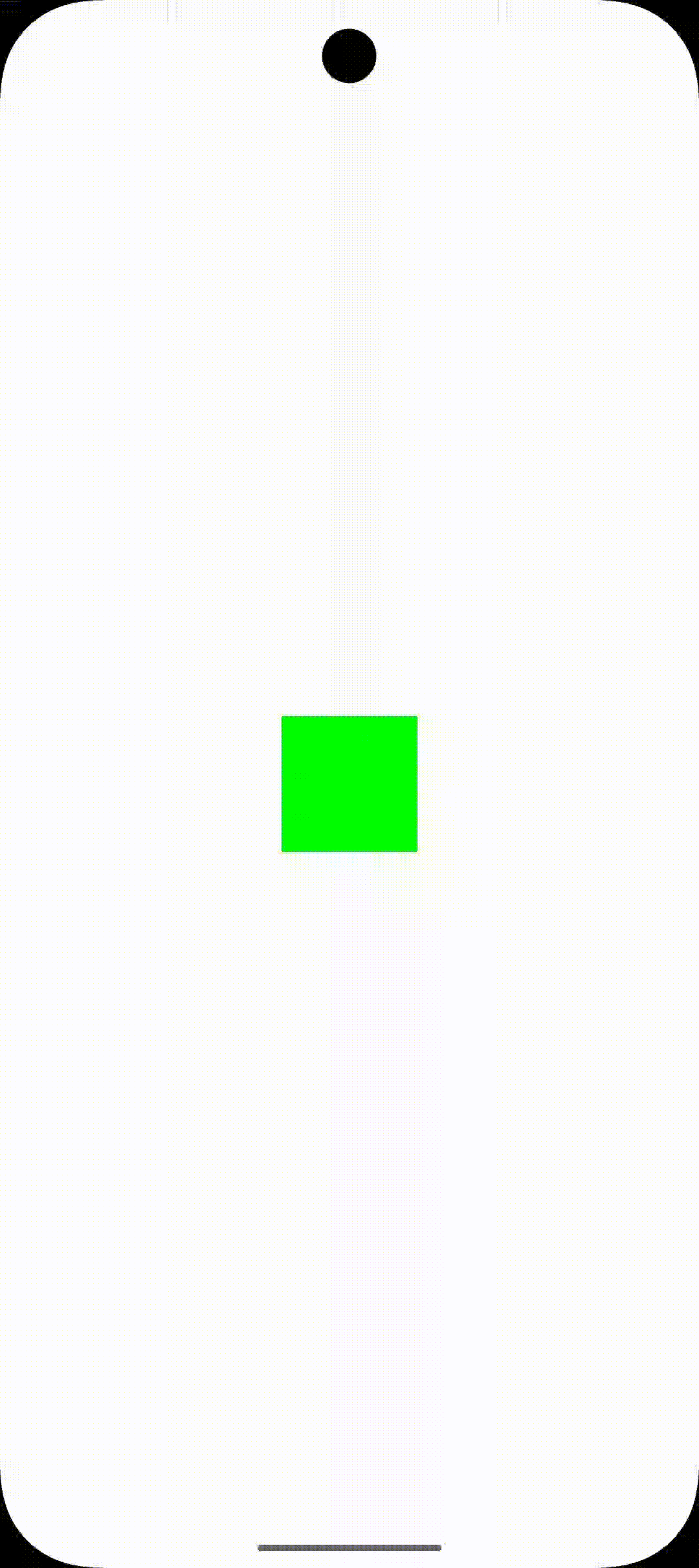

Example 3: Animating Position (Offset)

@Composable
fun SpringOffsetExample() {
    var moved by remember { mutableStateOf(false) }

    val offset by animateOffsetAsState(
        targetValue = if (moved) Offset(300f, 300f) else Offset.Zero,
        animationSpec = spring(
            dampingRatio = Spring.DampingRatioMediumBouncy,
            stiffness = Spring.StiffnessHigh,
            visibilityThreshold = Offset(1f, 1f)
        )
    )

    Box(
        modifier = Modifier
            .offset { IntOffset(offset.x.toInt(), offset.y.toInt()) }
            .size(80.dp)
            .background(Color.Green)
            .clickable { moved = !moved }
    )
}

@Preview(showBackground = true)
@Composable
fun SpringOffsetExamplePreview() {
    CenteredPreview {
        SpringOffsetExample()
    }
}

What to watch:

• Movement feels natural
• Slight bounce at destination
• Stops cleanly without micro-shakes

Why visibilityThreshold is Important

1. Performance Optimization

Without it:

• The animation engine keeps recalculating tiny differences
• Wastes CPU cycles
• Impacts battery (especially on low-end devices)

With it:

• Animation ends decisively
• Reduces recompositions

2. Visual Stability

Tiny sub-pixel movements can cause:

• Flickering
• Jitter
• Unstable UI feel

Threshold eliminates those artifacts.

3. Better UX

Users don’t perceive microscopic differences.

Ending animations early:

• Feels faster
• Feels smoother
• Improves perceived performance

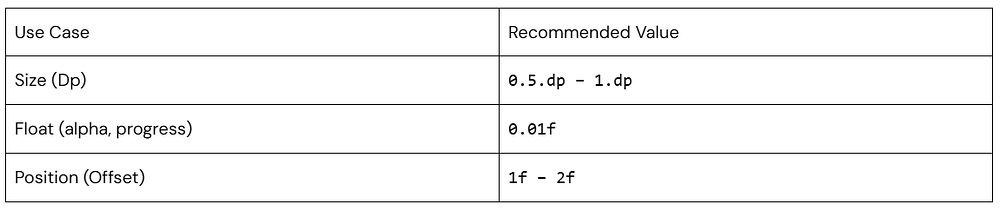

Choosing the Right Threshold

Here’s a practical guideline:

Avoid:

• Too small → wasted computation
• Too large → noticeable snapping

Common Mistakes

Ignoring it completely
→ Animations run longer than needed

Using the same value everywhere
→ Different types need different precision

Setting it too high
→ Animation ends too early and looks abrupt

Conclusion

visibilityThreshold is easy to overlook, but it has a noticeable impact on how polished your animations feel.

A small tweak here can:

• Reduce unnecessary work
• Improve smoothness
• Make animations feel more intentional

It’s one of those details that separates a working UI from a well-crafted one.
